Hailo 1-2-3 500 combi
The multipurpose aluminium scaffold with ingenious "Speed Lock" one-handed quick lock. Maximum working height of approx. 4.35 m.
Choose variant
9459-5019459-501 | 233 cm
-
The key features
- Easy to handle and fitted with one-handed "Speed Lock" for lightweight, fast assembly
- Working platform with access hatch (61 x 46 cm)
- 2 crosspieces incl. 2 transport castors
- Step adjustment option
Other product advantages
- Scaffold and ladder in one

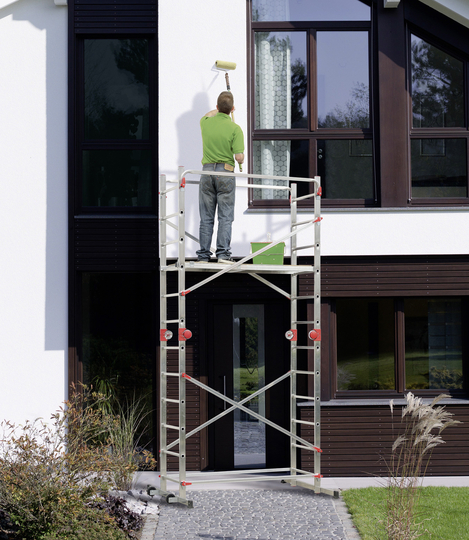

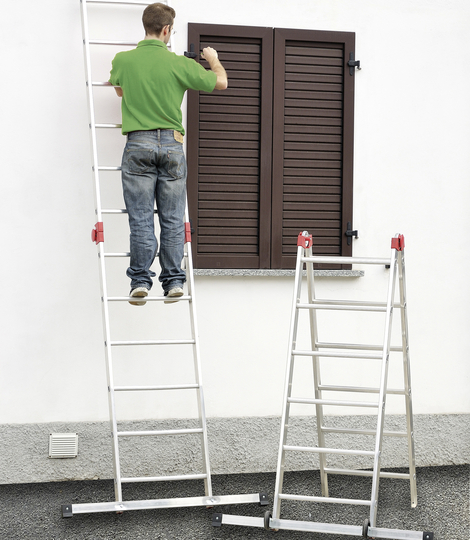

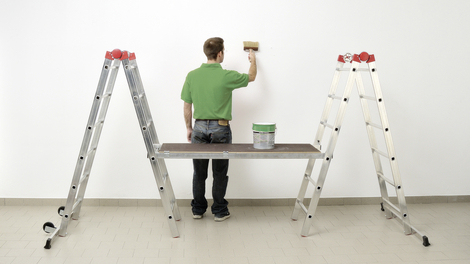

- Multipurpose: for use as a lean-to ladder and double ladder, as a small scaffolding unit for indoors and outdoors or as a platform for working
- 2 ladder sections of 12 rungs (27 x 27 mm) with safety joints for locking/releasing the ladder sections
- Platform dimensions: 136 x 50 cm
- 4 guard rails and 4 aluminium diagonal struts
- Upright dimensions: 60 x 22 mm
- Rung spacing: 260 mm
- Maximum load capacity 150 kg
Properties
- Rungs: 2x12
- Working height:
as scaffolding max. 435 cm,
as trestle ladder max. 285 cm,
as lean-to ladder max. 420 cm - Weight: approx. 30.7 kg
-
Specifications
Can be used in a free-standing position Working platform Step adjustment Ladder sections can also be used on their own Movable Level of equipment 3 Dimensions of packaging (HxWxD) A = 166 cm, B = 60 cm, C = 34 cm Platform height 233 cm Max. working height 435 cm Weight 30,7 kg
Specifications
-
Can be used in a free-standing position -
Working platform -
Step adjustment -
Ladder sections can also be used on their own -
Movable -
Level of equipment - 3
Dimensions of packaging (HxWxD)- A = 166 cm, B = 60 cm, C = 34 cm
Platform height- 233 cm
Max. working height- 435 cm
Weight- 30,7 kg
-
-
Downloads
Aufbauanleitung / Assembly instructions Anleitung_Instructions_Hailo1-2-3_500_Combi_9459_501.pdf Download
Downloads
- Aufbauanleitung / Assembly instructions
- Anleitung_Instructions_Hailo1-2-3_500_Combi_9459_501.pdf
Accessories / spare parts
