ProfiStep® multi

The unique, flexible aluminium ladder scaffold - safe, light and mobile.

Detail Detail

9476-001  |



  • The key features

    So you can aim higher

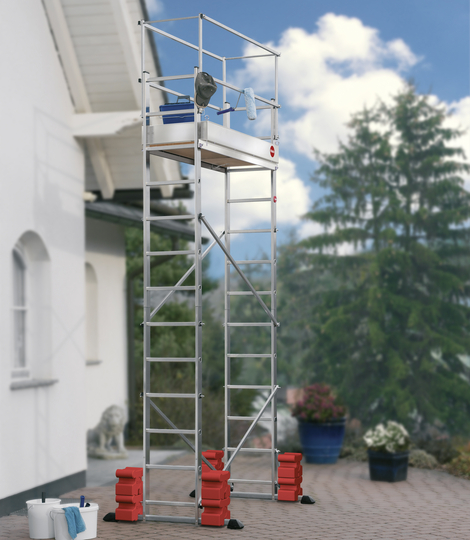

    Work that demands above-average stability and must be done at great heights is now within the reach of everyone. The 2-element ProfiStep® system is a match for almost every upward mobility scenario. Even the base element (9476-001) offers a spacious, railing-protected platform for work at heights up to 3 m. And the separate add-on element (9477-001) allows you to work even at heights of up to 5 m. Weights are required to ensure stability. These can be obtained separately as accessories.

    Systematic safety: light, sturdy and mobile
    The ladder scaffold is so compact that it can fit into the boot of any large estate car. It is very easy to assemble and extremely mobile: the two castors allow the scaffold to be moved to the desired position easily. Also suitable for use on stairs and landings. Work like the professionals - with the Hailo ProfiStep® ladder scaffold.

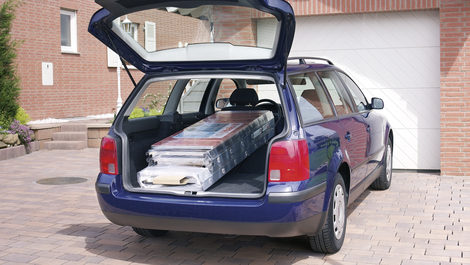

    • Compact - fits into any MPV
    • Easily erected by two People
    • Working platforms with access hatch made of non-slip multi-layered wood

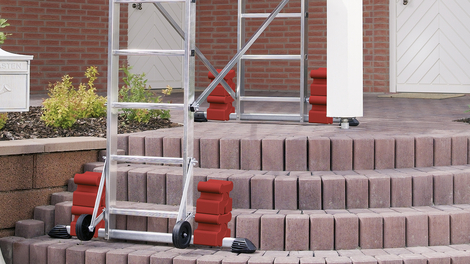

    • Can be used on stairs and landings – a working platform and ladder fittings can be attached at different heights
    • Top platform has alu toe board surround
    • 2 wall fixtures from the first platform upwards for a secure hold when working on facades
    • Easy positioning by means of its two castors
    • Work platform easily accessible via the ladders and an integral access hole
    • Up to 5 m working height
    • Platform 1.5 x 0.6 m with access hole and 4 guard rails

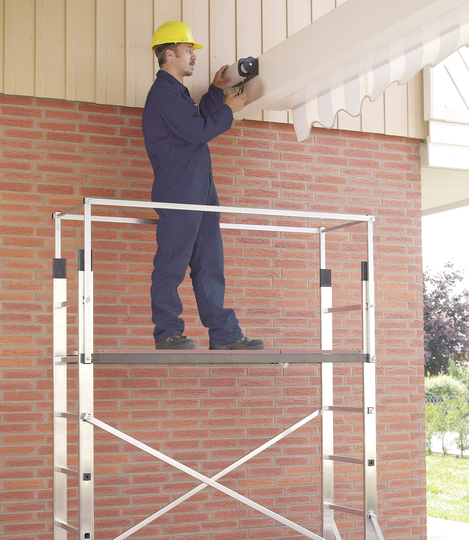

    • Spacious, secure platform for working heights of up to 3 m
    • Load capacity 135 kg
    • 4 safety braces
    • 2 castors ensure mobility
    • Scaffold group 3
    • Max. load 150 kg/m²

    Add-on element 9477-001
    • Can only be used in combination with base element 9476-001
    • Above-average stability for heights up to 5 m

    Ballast weights for stability of the aluminium ladder scaffold are mandatory from the first platform upwards.
    • Ballast weights, 12.5 kg, can be obtained separately
    • Platform on 7th and 8th rungs - 4 weights required
    • Platform on 9th to 11th rungs - 8 weights required

    Properties

    Base element
    • Rungs: 2x6
    • Working height: max. 300 cm
    • Weight: 38.5 kg
  • Specifications

    Movable
    Step adjustment
    Working platform
    Can be used in a free-standing position
    Dimensions of packaging (HxWxD) A = 186 cm, B = 50 cm, C = 16 cm
    Max. working height 300 cm
    Weight 38,5 kg
    Platform height 100 cm

    Specifications


    Movable

    Step adjustment

    Working platform

    Can be used in a free-standing position

    Dimensions of packaging (HxWxD)
    A = 186 cm, B = 50 cm, C = 16 cm

    Max. working height
    300 cm

    Weight
    38,5 kg

    Platform height
    100 cm
